산업 원심 팬
>

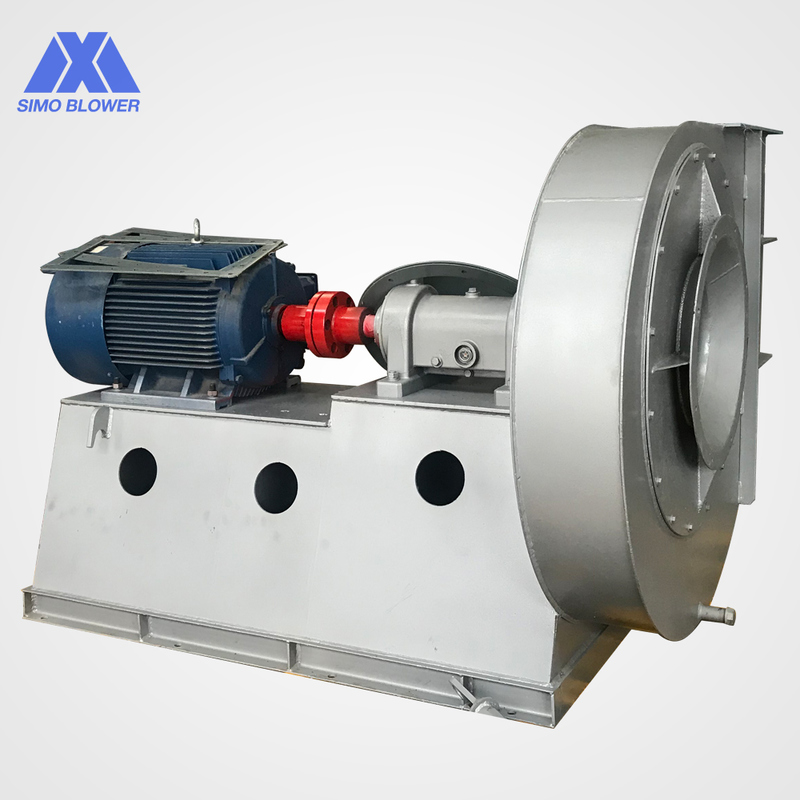

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower

제품 상세정보:
원래 장소: Henan China
브랜드 이름: SIMO
인증: CE, ISO9001:2008,TUV
모델 번호: 시모 송풍기 6-08
상세 정보
원래 장소:
Henan China
브랜드 이름:
SIMO
인증:
CE, ISO9001:2008,TUV
모델 번호:
시모 송풍기 6-08
애플리케이션:
산업/ 폭발 저항성
증가하는 타입:
베이스 장착
총 압력 범위:
2284-14122PA
재료:
탄소강
드라이브 유형:
벨트 / 직접 구동
속도:
≤3500rpm
전압:
380V/415V/440V/660V/6KV/10KV
맞춤형 지원:
ODM OEM OBM
베어링 냉각:
공기 냉각 또는 순환 수냉
보증:
1 년
강조하다:

High Light

강조하다:

low-flow centrifugal fan blower

,

medium-pressure industrial centrifugal fan

,

high-efficiency ventilation blower

Trading Information
최소 주문 수량:
1 세트
가격:
협상 가능
포장 세부 사항:
스틸 파렛트 포장, 나무 상자 포장을 수출합니다
배달 시간:
15-35 일
지불 조건:
전신환, L/C (신용장), 지불조건은 교섭할 수 있습니다
공급 능력:
한 달에 500 세트
제품 설명
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan blower
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan is a fan product designed by us. It is widely used in environmental dust removal, material transportation, and industrial equipment. If you need it, please feel free to contact us and provide your relevant parameters. Our design engineers customize centrifugal fans for your plant.
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 0
Product Features
  • This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
  • The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.
  • V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.
  • Equipped with tapered sleeve embedded pulley, easy to disassemble.
  • The collector is equipped with a mounting flange to facilitate the customer to use the pipeline.
Product Parameters
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
Series no. 6-08 series Feature selection
Performance Impeller diameter 400-2800mm
Rotation speed ≤3000rpm
Pressure range 2284-14122Pa
Flow range 1381-261494m³/h
Structure Blade type Backward, Straight, Aerofoil type
Impeller support SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
Lubrication method Oil bath lubrication, grease lubrication, lubrication oil station
Cooling method Air cooling, Water cooling, Oil cooling
Driven mode Direct driven, Coupling driven, Belt driven
Gas composition Gas temperature Normal | Customer request | Customer request | ≥250ºC | Customer request
gas characteristic Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas
System configuration Motor brand Chinese famous brand, ABB, Siemens, WEG etc
Impeller High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy
Air inlet cone High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel
Casing High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel
Air damper High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel
Main shaft High strength carbon steel, Alloy structural steel
Bearing ZWZ, SKF, FAG, NSK
Bearing housing Cast iron
Foundation bolts GB799-1988
Option parts System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
Detailed Photos
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 2
Manufacturing Process
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 3
Our Advantages
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 4 Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 5 Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 6
Company Profile
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 7 Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 8 Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 9 Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 10 Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 11
Customers Case
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 12
Packaging & Shipping
Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 13
