| 원래 장소: | Henan China |
| 브랜드 이름: | SIMO |
| 인증: | CE, ISO9001:2008,TUV |
| 모델 번호: | 시모 송풍기 5-10 |

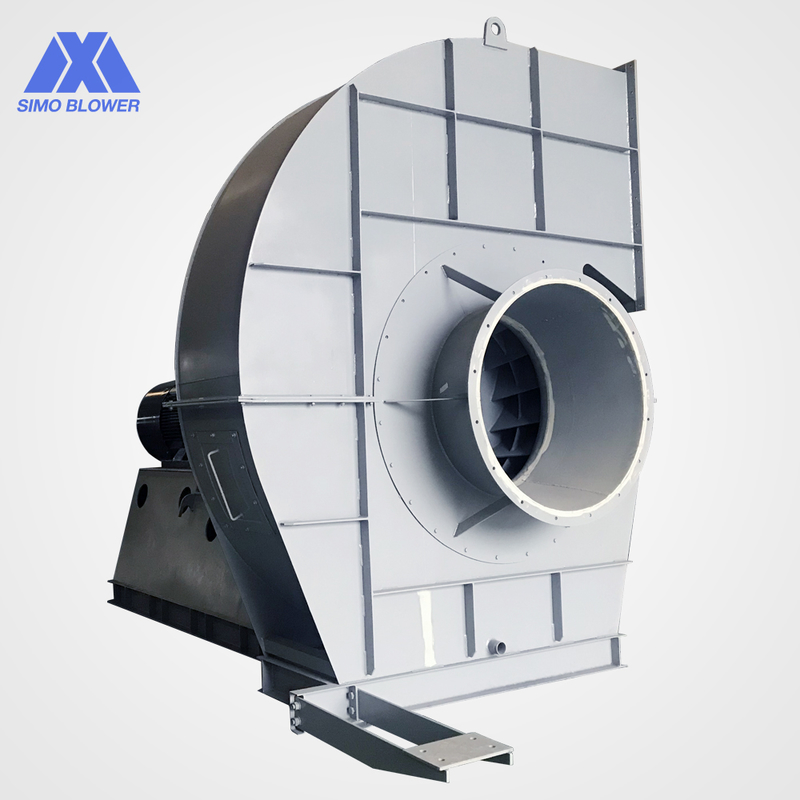

This customized centrifugal fan blower is engineered for high-volume, low-noise performance in demanding environments. Its core component is a robust 1430mm wear-resistant impeller, specifically designed to handle abrasive particulates while maintaining long-term operational efficiency and structural integrity. The fan delivers powerful airflow with significantly reduced acoustic levels, making it ideal for large-scale ventilation, dust removal, and material conveying systems in industries such as mining, metalworking, and power generation. Custom-built to specific requirements, it offers a reliable, durable, and quiet solution for heavy-duty industrial air moving applications.
| Performance | Specification | Unit |
|---|---|---|
| Pressure range | 1638 - 10707 | Pa |
| Air flow range | 9890 - 709000 | m³/h |
| Impeller diameter | 710 - 1600 | mm |
| Speed | 480 - 1450 | rpm |
| Material |
Blower fan casing: Q235, Q345, stainless steel (Design as special) Blower fan shaft: 45# steel, Q304, SS304, SS316L Blower fan impeller: Q304, 12Cr1Mov, 15Crmov, 15MnV |
|
| Medium | 10 - 120°C, Dustiness <80 g/m³ (incombustible) | |
| Motor | Siemens, ABB, WN, SIMO, LA (IP 54,55,56, 3 phase) | |
| Optional components | System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. | |
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc. If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
If you have a need for a fan, please provide the operating requirements and parameter information, and we will provide you with professional fan solutions.
