| 원래 장소: | Henan China |
| 브랜드 이름: | SIMO |
| 인증: | CE, ISO9001:2008,TUV |
| 모델 번호: | 시모 송풍기 5-55 |

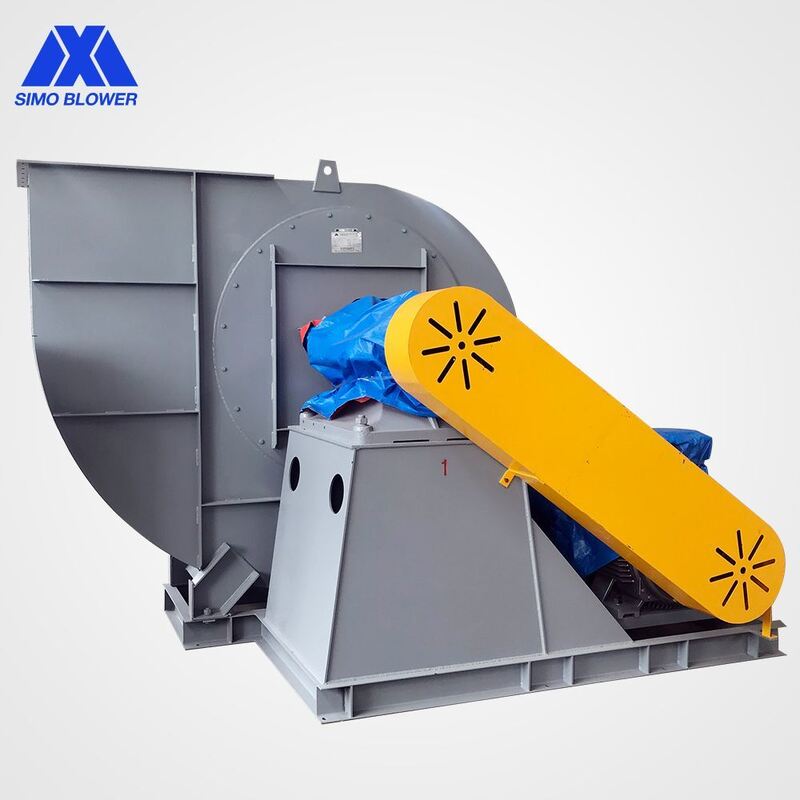

The 5-10 series ventilator is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.
In the coal-fired boiler system, the ventilation and induce draft systems of various boilers with evaporation capacity of 20 tons/hour to 800 tons/hour can be configured.
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements we will provide you customized design service.
| Performance | Specification | Unit |
|---|---|---|
| Pressure range | 1232~3867 | Pa |
| Air flow range | 3007-44413 | m3/h |
| Impeller diameter | 400~2800 | mm |
| Speed | 580~2900 | rpm |
| Material |
|
|
| Medium | 10---120 | Dustiness<80 g/m3 (incombustible) |
| Motor | Siemens, ABB, WN, SIMO, LA (IP 54,55,56, 3 phase) | |
| Optional components |
|
|
Pursue excellent quality, make perfect product!
SIMO BLOWER are mainly centrifugal fans and axial flow fans, covering more than 30 series and more than 2,000 specifications, which are widely used in electric power, metallurgy, building materials, coal, petrochemical, industrial kilns and other fields.
