| 원래 장소: | 중국 |
| 브랜드 이름: | SIMO BLOWER |
| 인증: | CE/ISO9001/ISO45001 |
| 모델 번호: | 시모 송풍기 4-10 |

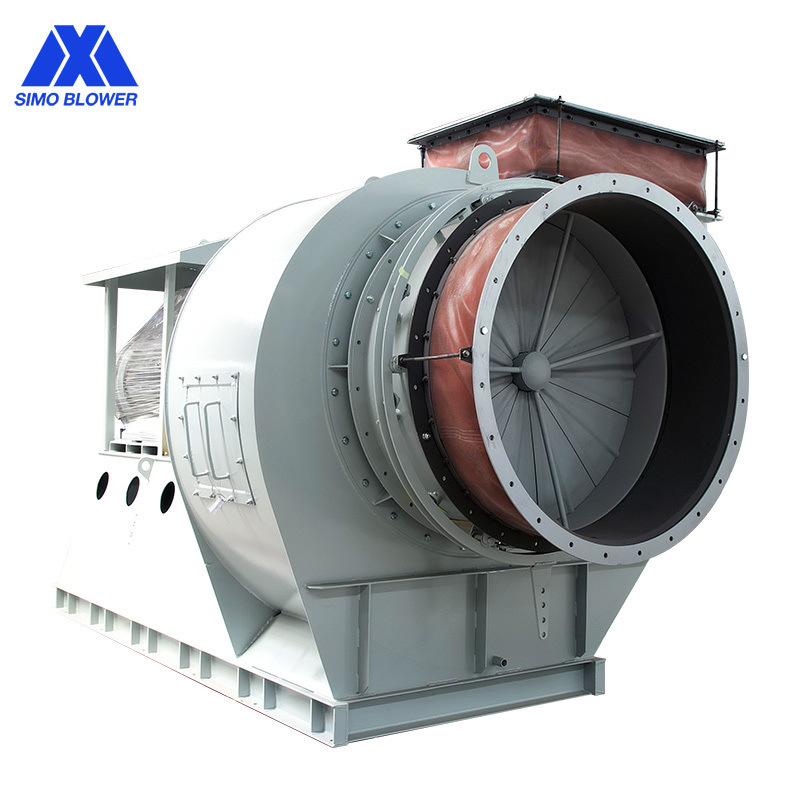

Designed for biomass boiler applications, our 380V centrifugal fan combines exceptional wear resistance with high energy efficiency to meet the demanding conditions of renewable energy production. The fan features specialized protective coatings and reinforced impeller designs to withstand abrasive particles and corrosive elements present in biomass combustion.
Operating at industrial 380V standards, it delivers reliable performance while significantly reducing power consumption through optimized aerodynamic engineering. We offer ODM support to customize specifications according to your specific boiler system requirements, ensuring perfect integration and operational efficiency.
This certified solution not only extends service life and reduces maintenance costs but also supports sustainable operations by enhancing combustion efficiency and reducing carbon emissions--making it an ideal choice for modern biomass energy facilities seeking both economy and durability.
The following datas are only part of performance of our product. If you can't find the datas you need, please send us your performance requirements we will provide you customized design service.
| Series | Model | Rotation Speed (r/min) | Total Pressure (Pa) | Air Capacity (m³/h) | Power (kW) |
|---|---|---|---|---|---|
| 4-10 | 8D | 1450 | 2104~1400 | 16156~30993 | 18.55 |
| 9D | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 | |
| 4-10 | 10D | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 |
| 11D | 730 ~ 1450 | 669 ~ 4003 | 21144 ~ 80570 | 11 ~ 90 | |
| 4-10 | 12D | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 |
| 14D | 730 ~ 1450 | 1086 ~ 6541 | 43591 ~166100 | 37 ~ 315 | |
| 4-10 | 16D | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 |
| 18D | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 | |
| 4-10 | 20D | 580 ~ 960 | 1400 ~ 5837 | 100970 ~ 320610 | 110 ~ 520 |
| 22D | 480 ~ 960 | 1216 ~ 6865 | 116000 ~ 434000 | 140 ~ 850 | |
| 4-10 | 25D | 480 ~ 730 | 1579 ~ 5138 | 171000 ~ 484000 | 165 ~ 700 |
| 28D | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 | |
| 4-10 | 29.5D | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
We are strict with every step about the industrial centrifugal fan and axial fan.
Pursue excellent quality, make perfect product!
Delivery detail: 35 days after receive your payment
